4” Front Lift Kit for RAM 1500 DS – Bilstein 5100 Shocks (100+Kg extra load)

4” Front Lift Kit for RAM 1500 DS

Bilstein 5100 + 182mm Spring Seat (100+Kg extra load)

Looking to achieve a proper 4 inch Front Lift Kit for RAM 1500 DS without spending thousands on a full suspension kit? Our Bilstein 5100 Ride Height Adjustable Shocks paired with Heavy Duty 50mm Lift Coil Springs offer a reliable and cost effective way to raise your truck’s front end perfect for off roading, towing, or achieving that aggressive leveled stance.

How It Works:

This Front Lift Kit for RAM 1500 DS setup utilizes Bilstein’s 5100 adjustable struts, which allow you to change the vehicle’s ride height by repositioning the spring perch on the shock body. When paired with taller coil springs, this combination increases both ride height and overall suspension performance.

This front lift kit for the RAM 1500 DS platform is engineered using the highly respected Bilstein 5100 series adjustable struts, known for their durability and superior ride quality on and off the road. The key feature of the 5100 struts is their multiple snap ring grooves along the shock body, which allow precise adjustment of the spring seat height. This system lets you fine tune your front-end lift without needing a spacer or replacement coil spring.

Technical Details:

• Adjustable Spring Perch Grooves:
  The Bilstein 5100 struts have multiple snap-ring grooves to raise the coil spring seat. This changes preload and ride height without using external spacers.

• Lift from Preload + Spring Length:
  The combination of higher spring preload (via strut adjustment) and longer coil spring gives you 4 inches of total front lift.

• Maintains Ride Quality & Safety:
  Unlike spacer lifts, this method preserves proper suspension geometry, full shock travel, and factory ride characteristics.

• More Travel, More Capability:
  This setup increases bump and droop travel, which means better off road articulation and control.

Installation Note:

• Spring Compression is Required:
  Installing this setup requires safely compressing the coil spring to mount onto the Bilstein strut. This job should only be done by trained professionals using proper spring compressors to avoid injury or damage.

• Upper Control Arms:
  For optimal alignment and suspension travel with this amount of lift, Upper Control Arms are recommended.

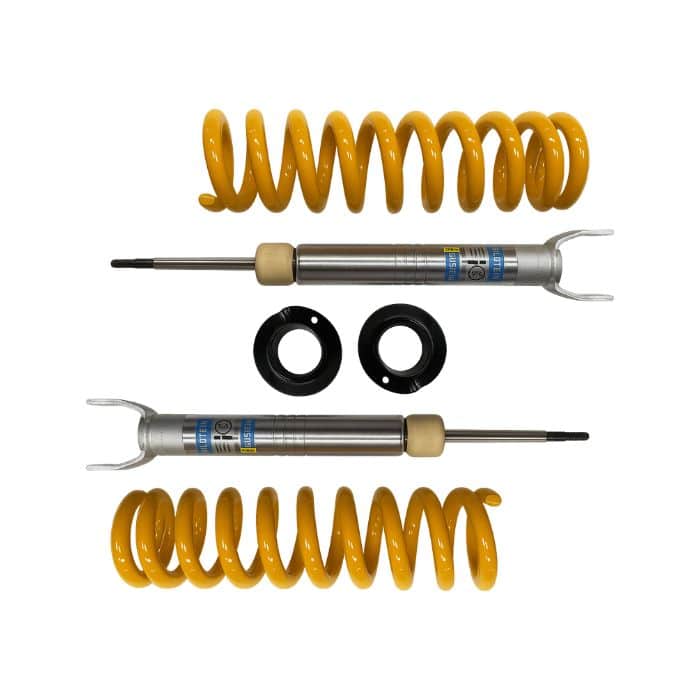

What’s Included:

• Bilstein 5100 Ride Height Adjustable Front Struts

• Upgraded 50mm Front Lift Coil Springs (Apache or Equivalent)

Installation Overview (See Images):

The installed image shows:

1. Bilstein 5100 shock installed with yellow 182mm lift coil spring

2. Upgraded control arms to accommodate the increased down travel

3. Full shock and spring assembly fitted correctly, with no spacer used

4. Brake and ABS lines routed correctly, no stretching or interference

NOTICE OF DISCLAIMER–Lift and Levelling Kits

Not all lift kits are legal to install on your vehicle. It is the customers’ responsibility to check regulations and their vehicle and warranty coverage prior to purchasing and the installation of all lift and levelling kits to their vehicle.

Lift and levelling kits may interfere with vehicle functions including but not limited to stability control, auto levelling functions and chassis clearance issues.

The bigger the lift or levelling kit that is fitted increases the chances of the factory CV joints wearing out prematurely. High articulation CV joints are available to minimize this matter if required.

In certain circumstances the factory inner CV joint boots may slip off the end of the shaft due to the change in the angle after a front lift has been fitted. In most circumstances fitting an improved CV boot clamp to the CV boot will assist with this matter.

It is suggested that the customer does their own research prior to purchasing and requesting the installation of lift and levelling kits to their vehicle.
